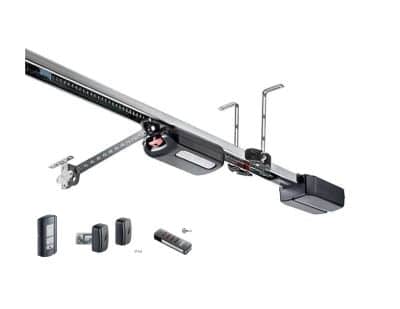

2060 evo+

  • Code: YS10256-00001
  • Barcode: 4 015862 044303


Description:

  • 600 Newton Motor (3/4 HP equivalent)
  • 3-piece c-channel rail for doors up to 8′ tall
  • One 4-button Pearl transmitter included
  • Wired safety sensors
  • Wired 3-button wall station
Call Us Now!

Product Features

  • Direct drive technology with one moving part for maximum force and longevity
  • For use on standard lift or low headroom sectional doors, one-piece doors, up-and-over doors, canopy doors, roof pitch doors, and extreme breakaway high lift doors
  • Soft start and stop on a variable curve ramp
  • Dynamic force and speed settings automatically adjust over time for changing door and environmental conditions to optimize safety and operation
  • Active motor braking during travel helps minimize loss of control during door malfunction
  • Operator actively pushes in the closed direction during attempted break-in
  • Emergency release can be disengaged and re-engaged in any position
  • Built-in LED lighting at the motor carriage
  • Easily cut down rail and chain for tight spaces and/or use Connector Wire and GDO Connection Coupler to gain additional travel (see Header to Obstruction Chart)
  • Add Short, Medium, or Long Rail Extension for taller doors up to 24′ (see Door Height by Rail Extension Chart)
  • Monitored safety edge and optical safety edge terminals on motor carriage to avoid coil cords or take up reels
  • Interlock capable for pass doors, mechanical locks, etc.
  • Pre-programmed 4-button Pearl transmitter in the box
  • Repeating and forwarding radio functions for maximum range
  • Use Pearl Vibe or Slider Vibe transmitters for live feedback from operator
  • Multiple functions available through radio commands: pulse operation, light function, partial opening, defined open, and defined close
  • Transmitter management on-site or remotely through Codemaster+
  • Accu internal battery back up or Accu 2.2 external battery back up provide power for standby operation during power outages
  • Compatible with SOMweb for remote access and monitoring by push notifications and/or with live in-app indoor or outdoor camera feed
  • Use Telecody Courier for parcel delivery to your garage with any delivery service–opening distance is adjustable by homeowner
  • Automatic closing in either semi-automatic or fully automatic modes (Buzzer required for activation)
  • Use Relay for switching external garage lighting up to 240V/5A
  • Maintenance-free for most environments
  • Motor carriage can be easily removed for service or repair without needing to disassemble rail
  • ~100 settings adjustments, ~60 diagnostic features, and ~180 standard operating codes available through SOMlink service interface

Technical Specifications

  • Assembled size: 140.8″L x 4.37″W x 5.55″H
  • 922.5 MHz radio frequency with 128-bit AES encryption
  • SOMloq2 system
  • Rolling code
  • 4-channel on-board receiver
  • 40-slot receiver memory (expandable to 450 slots with Memo)
  • Homelink module included for 310 MHz direct programming
  • Tested to 125,000 cycle threshold in beta phase
  • Rated for doors up to 600 lbs. counter-balanced weight (see Door Weight Chart for reference)
  • Up to 9.4″ per second operating speed at 7,800 RPM
  • Duty rating: 40% after S3 (see Duty Rating Chart for more information)
  • Max travel with extensions: 24′ (see Door Height by Extensions chart for additional information)
  • UL listed and compliant with current UL325 requirements for residential and commercial doors
  • 6′ power cord
  • 120V AC 60 Hz power input
  • 24V AC, 100 VA transformer with Class 2 UL protection rating
  • 24V DC motor
  • 1A max power draw with >3 W standby power
  • >59 dBA noise level (operator only)
  • NEMA 1 / IP 21 rated
  • FCC ID: T8C206
  • IC ID: 6496A-206


Warranty

  • Lifetime motor
  • 6-year parts
  • 2-year accessories

Items Included in the Box

Shipping Information

  • Factory package size: 44″L x 7.5″W x 5″H
  • Factory package wight: 31 lbs.
  • UPS package size: 45″L x 9″W x 6.5″H
  • UPS package weight: 33 lbs.
  • Factory packages per pallet: 65
  • Pallet size: 45″W x 45″L x 70″H
  • Pallet wieght: 2,055 lbs.
  • Country of Origin: Germany


WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
